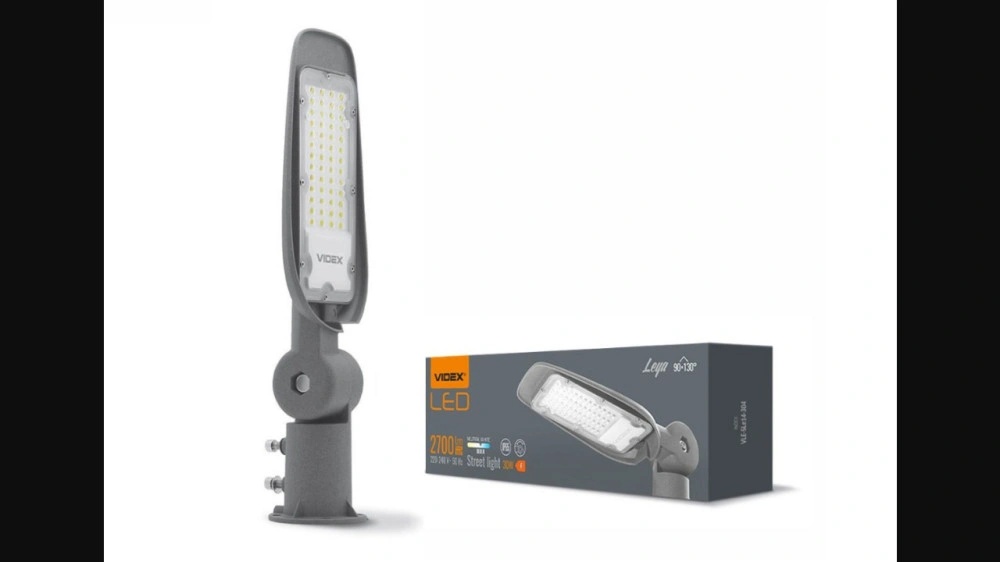

VIDEX LEYA is an LED street light with complete protection against water, dirt and mechanical impact. This product is intended for lighting of park paths, street sidewalks, yards, roads of local and regional importance. A wide range of operating temperatures removes restrictions on the use of the light in any weather. The housing of the lamp is equipped with the mechanism of adjustment of an angle of inclination within 200 degrees. The hybrid mounting part makes it possible to install the light not only on poles but also on walls. The surface of the case is covered with a special rough layer that is difficult to scratch or damage. LEDs are equipped with oval-shaped optical lenses, which allows them to distribute light mainly along the road. Long service life of 30,000 hours.

Specifications

On-mode power (Pon):
30 W

Useful luminous flux of the light source (Φuse):
2700 Lm

Correlated color temperature:
5000K (neutral white)

Peak luminous intensity:
1700 cd

Rated voltage, frequency:
AC 220-240 V, 50/60 Hz

Beam angle:
90 × 130°

Place of installation :
Pillar, Wall

Vertical adjustment range:
200°

Place of application:
outdoor

Mounting hole size:
Ø54 mm

Cable length:
30 cm

Rated current:
140 mA

Power factor (PF):
0.9

Color rendering index (CRI):
Ra > 80

Lifetime:
30000 h

On/Off cycles:
20000

Housing colour:
Gray

Impact protection:
IK07

Input interface:
Free wire ends

Useful luminous flux of the light source reference:
in a wide cone (120°)

Electric shock protection class:
I

Minimum distance from the illuminated object:
0.5 m

Diffuser material:
PC

Diffuser type:
symmetric

Operating temperature range:
-20° +50°C

Dimmable:
no

Control gear replaceable:
-

Light source replaceable:
no

Mercury content:
Does not contain

Ingress protection:
IP65

Housing material:
Aluminum alloy

Height:
439 mm

Width:
129 mm

Depth:
88 mm
